Comparing correction methods#
Run every MaldiBatchKit corrector on the same dataset and compare them on three batch-mixing metrics (silhouette, kBET acceptance, LISI) plus per-batch peak-position drift.
Uses the MALDI-Kleb-AI dataset (Rocchi et al., 2026; Zenodo DOI 10.5281/zenodo.17405072); see notebook 01 for caching details.
1. Load the dataset#
[1]:
import sys, pathlib
sys.path.insert(0, str(pathlib.Path.cwd().parent))
from notebooks._demo import load_maldi_kleb_ai
ds = load_maldi_kleb_ai(antibiotic='Amikacin')
print('X:', ds.X.shape, '| batches:', ds.batch.value_counts().to_dict())
ds.meta.head()
X: (741, 6000) | batches: {'Rome': 470, 'Milan': 184, 'Catania': 87}
[1]:
| Amikacin | Meropenem | Species | Batch | SNR | |
|---|---|---|---|---|---|
| 1-8317003599 | S | S | Klebsiella pneumoniae | Milan | 128.163340 |
| 10-8320002130 | S | S | Klebsiella pneumoniae | Milan | 128.492364 |
| 100-8660007296 | S | S | Klebsiella pneumoniae | Milan | 149.638040 |
| 1004 | R | R | Klebsiella pneumoniae | Rome | 70.134876 |
| 101-8140000209 | S | S | Klebsiella pneumoniae | Milan | 84.646561 |
2. Baseline metrics (no correction)#
[2]:
import numpy as np, pandas as pd
import matplotlib.pyplot as plt
%matplotlib inline
from maldibatchkit.diagnostics import silhouette_batch, kbet, lisi
def summarise(X):
return {
'silhouette': silhouette_batch(X, ds.batch),
'kbet_acc': kbet(X, ds.batch)['acceptance_rate'],
'lisi': lisi(X, ds.batch, perplexity=30.0),
}
baseline = summarise(ds.X)
baseline
[2]:
{'silhouette': 0.1474570958800467,
'kbet_acc': 0.020242914979757085,
'lisi': 1.0145424511187204}
3. Run every corrector#
[3]:
from maldibatchkit import (
ComBat, Limma, Harmony,
MedianCentering, ZScorePerBatch, ReferenceScaling,
QualityWeightedComBat, SpeciesAwareComBat,
)
pipelines = {
'ComBat (Johnson)': lambda: ComBat(batch=ds.batch, method='johnson'),
'ComBat (Fortin + species)': lambda: SpeciesAwareComBat(batch=ds.batch, species=ds.species),
'ComBat (Chen / CovBat)': lambda: ComBat(
batch=ds.batch, method='chen',
discrete_covariates=ds.species, covbat_cov_thresh=0.9,
),
'Quality-weighted ComBat': lambda: QualityWeightedComBat(batch=ds.batch, quality=ds.quality),
'Limma': lambda: Limma(batch=ds.batch),
'Harmony': lambda: Harmony(batch=ds.batch, random_state=0, max_iter=10, nclust=5, theta=4.0),
'Median-centering': lambda: MedianCentering(batch=ds.batch),
'Z-score per batch': lambda: ZScorePerBatch(batch=ds.batch),
'Reference scaling': lambda: ReferenceScaling(batch=ds.batch),
}
[4]:
rows = []
for name, build in pipelines.items():
X_c = build().fit_transform(ds.X)
rows.append({'method': name, **summarise(X_c)})
summary = pd.concat([
pd.DataFrame([baseline], index=['(before)']),
pd.DataFrame(rows).set_index('method'),
])
summary.style.format('{:.3f}')
2026-04-23 14:26:03,416 - harmonypy - INFO - Running Harmony (PyTorch on cuda)
2026-04-23 14:26:03,417 - harmonypy - INFO - Parameters:
2026-04-23 14:26:03,417 - harmonypy - INFO - max_iter_harmony: 10
2026-04-23 14:26:03,418 - harmonypy - INFO - max_iter_kmeans: 20
2026-04-23 14:26:03,418 - harmonypy - INFO - epsilon_cluster: 1e-05
2026-04-23 14:26:03,418 - harmonypy - INFO - epsilon_harmony: 0.0001
2026-04-23 14:26:03,419 - harmonypy - INFO - nclust: 5
2026-04-23 14:26:03,419 - harmonypy - INFO - block_size: 0.05
2026-04-23 14:26:03,419 - harmonypy - INFO - lamb: [1. 1. 1.]
2026-04-23 14:26:03,420 - harmonypy - INFO - theta: [4. 4. 4.]
2026-04-23 14:26:03,420 - harmonypy - INFO - sigma: [0.1 0.1 0.1 0.1 0.1]
2026-04-23 14:26:03,421 - harmonypy - INFO - verbose: True
2026-04-23 14:26:03,422 - harmonypy - INFO - random_state: 0
2026-04-23 14:26:03,422 - harmonypy - INFO - Data: 50 PCs × 741 cells
2026-04-23 14:26:03,422 - harmonypy - INFO - Batch variables: ['batch']
2026-04-23 14:26:03,602 - harmonypy - INFO - Computing initial centroids with sklearn.KMeans...
2026-04-23 14:26:03,610 - harmonypy - INFO - KMeans initialization complete.
2026-04-23 14:26:03,780 - harmonypy - INFO - Iteration 1 of 10
2026-04-23 14:26:04,006 - harmonypy - INFO - Iteration 2 of 10
2026-04-23 14:26:04,070 - harmonypy - INFO - Iteration 3 of 10
2026-04-23 14:26:04,108 - harmonypy - INFO - Iteration 4 of 10
2026-04-23 14:26:04,146 - harmonypy - INFO - Iteration 5 of 10
2026-04-23 14:26:04,181 - harmonypy - INFO - Iteration 6 of 10
2026-04-23 14:26:04,209 - harmonypy - INFO - Iteration 7 of 10
2026-04-23 14:26:04,242 - harmonypy - INFO - Iteration 8 of 10
2026-04-23 14:26:04,270 - harmonypy - INFO - Converged after 8 iterations
[4]:
| silhouette | kbet_acc | lisi | |
|---|---|---|---|
| (before) | 0.147 | 0.020 | 1.015 |
| ComBat (Johnson) | -0.011 | 0.260 | 1.266 |
| ComBat (Fortin + species) | -0.015 | 0.267 | 1.238 |
| ComBat (Chen / CovBat) | -0.003 | 0.962 | 1.930 |
| Quality-weighted ComBat | 0.009 | 0.219 | 1.200 |
| Limma | 0.023 | 0.082 | 1.040 |
| Harmony | 0.001 | 0.422 | 1.384 |
| Median-centering | 0.042 | 0.126 | 1.044 |
| Z-score per batch | -0.005 | 0.333 | 1.820 |
| Reference scaling | 0.000 | 0.228 | 1.146 |

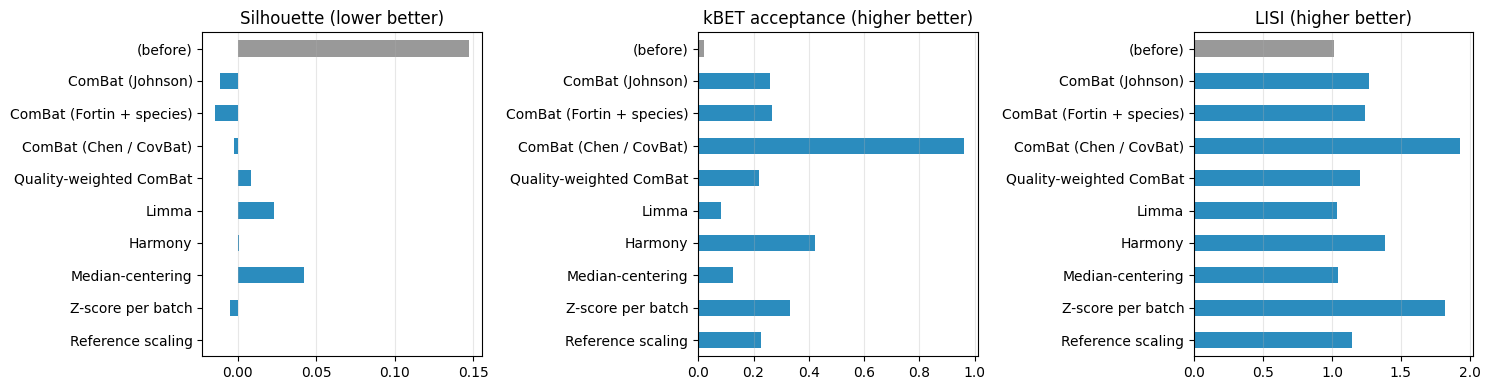

4. Visual comparison#
[5]:
fig, axes = plt.subplots(1, 3, figsize=(15, 4))
for ax, col, title in zip(
axes,
['silhouette', 'kbet_acc', 'lisi'],
['Silhouette (lower better)', 'kBET acceptance (higher better)', 'LISI (higher better)'],
strict=True,
):
colours = ['#999999'] + ['#2b8cbe'] * (len(summary) - 1)
summary[col].plot.barh(ax=ax, color=colours)
ax.set_title(title)
ax.invert_yaxis()
ax.grid(axis='x', alpha=0.3)
plt.tight_layout()
plt.show()
5. Per-batch peak-position drift, before vs after#
[6]:
from maldibatchkit.diagnostics import peak_position_drift
before = peak_position_drift(ds.X, ds.batch, mz_values=ds.mz, top_k=15)
combat_johnson = peak_position_drift(
ComBat(batch=ds.batch).fit_transform(ds.X),
ds.batch, mz_values=ds.mz, top_k=15,
)
species_combat = peak_position_drift(
SpeciesAwareComBat(batch=ds.batch, species=ds.species).fit_transform(ds.X),
ds.batch, mz_values=ds.mz, top_k=15,
)
pd.concat(
{'before': before, 'ComBat (Johnson)': combat_johnson, 'Species-aware ComBat': species_combat},
axis=1,
)
[6]:
| before | ComBat (Johnson) | Species-aware ComBat | |||||||
|---|---|---|---|---|---|---|---|---|---|
| mean_delta_mz | median_delta_mz | max_abs_delta_mz | mean_delta_mz | median_delta_mz | max_abs_delta_mz | mean_delta_mz | median_delta_mz | max_abs_delta_mz | |
| batch | |||||||||
| Catania | -1.2 | -3.0 | 6.0 | 0.0 | 0.0 | 6.0 | -0.2 | 0.0 | 3.0 |
| Milan | -1.6 | -3.0 | 12.0 | 0.4 | 0.0 | 6.0 | 0.6 | 0.0 | 6.0 |
| Rome | -1.2 | 0.0 | 30.0 | 0.2 | 0.0 | 3.0 | -0.6 | 0.0 | 6.0 |
